AC-350 Automatic Blister Paper Card Packing Machine

Short Description:

1.suitable for half cover sealing paper blister heat sealing packaging
2.Six station -rotating table design
3.Design according to your product

Product Detail

Product Tags


AC-350 is Suitable for half-cover seal blister card packaging, such as daily commodity , small hardware (battery, electronics, glue), stationery, auto part (brake pads, spark plugs), cosmetics (lipsticks),toys (small cars), food etc.

AC-350 Automatic Blister Paper Card Packing Machine (1)


--Automatic forming blister, punching the blister, scrap collect,dropping paper card, paper blister heat sealing, product output automatically.
--Accurate temperature control module, PVC shortage alarm, insufficient air pressure auto stop and automatic warning for damaged electrical parts.
--Human-machine interface and PLC control system, and is equipped with counting, starting password, fault reminder, maintenance reminder and other functions.

Main parameter

Production speed 15-18 times/min
Stroke range 30mm-200mm
Max forming area 320mm*160mm
Max standard forming depth 35mm
Forming heating power 3.5kw(*2)
Heat sealing power 2.5kw
Total power 12kw
Air consumption(air compressor) consumption ≥0.5 m³/min
Air Pressure 0.5-0.8mpa
Mold cooling water (chiller) 50 L/h
Packing material(PVC)(PET) thickness0.15mm-0.5mm内
Packing material (cardboard) 200g-500g
Max paper dimension 400mm*200mm*0.5mm
Total Weight 2100kg
Machine dimension(L*W*H) 3300mm*1700mm*1850mm

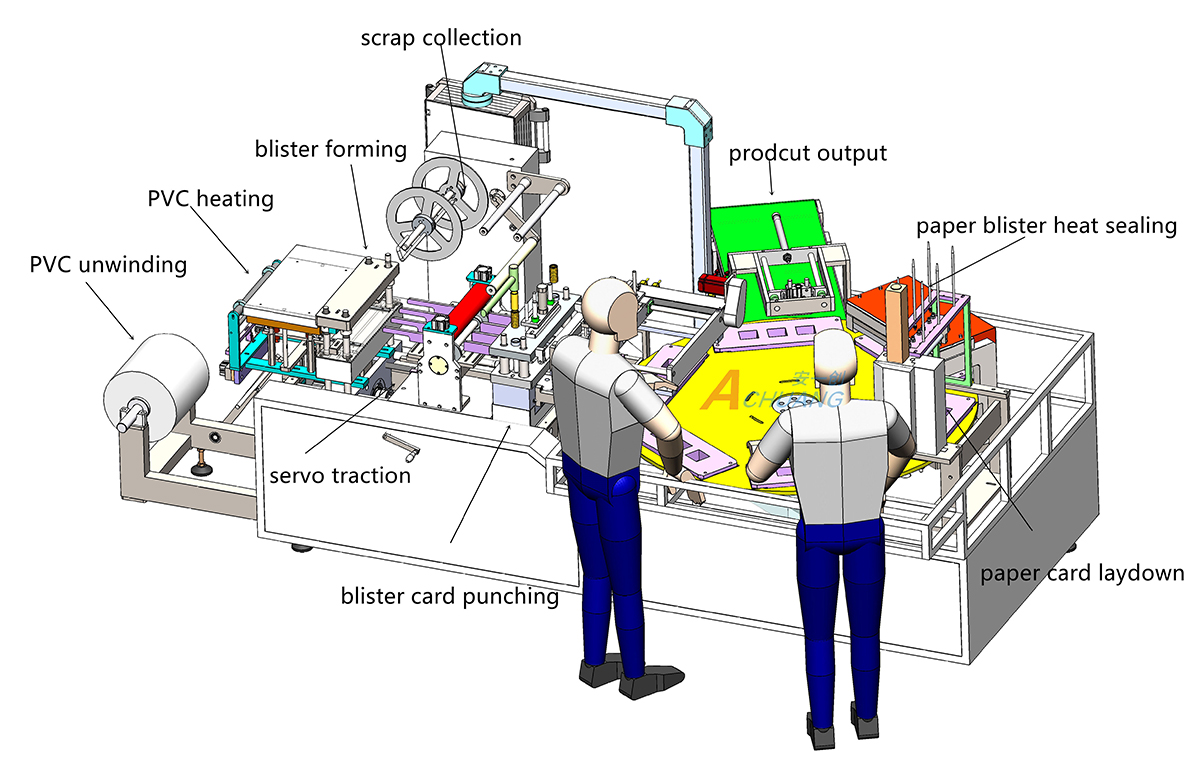

Flow Diagram

Working procedure:
PVC loading→PVC heating→blister forming→servo traction→blister cutting→PVC scrap collection→blister transfer to the turntable→worker place product→paper card lay down →hot sealing→product output
(optional choice:labelling machine, ink-jet printer)

AC-350 Automatic Blister Paper Card Packing Machine (2)

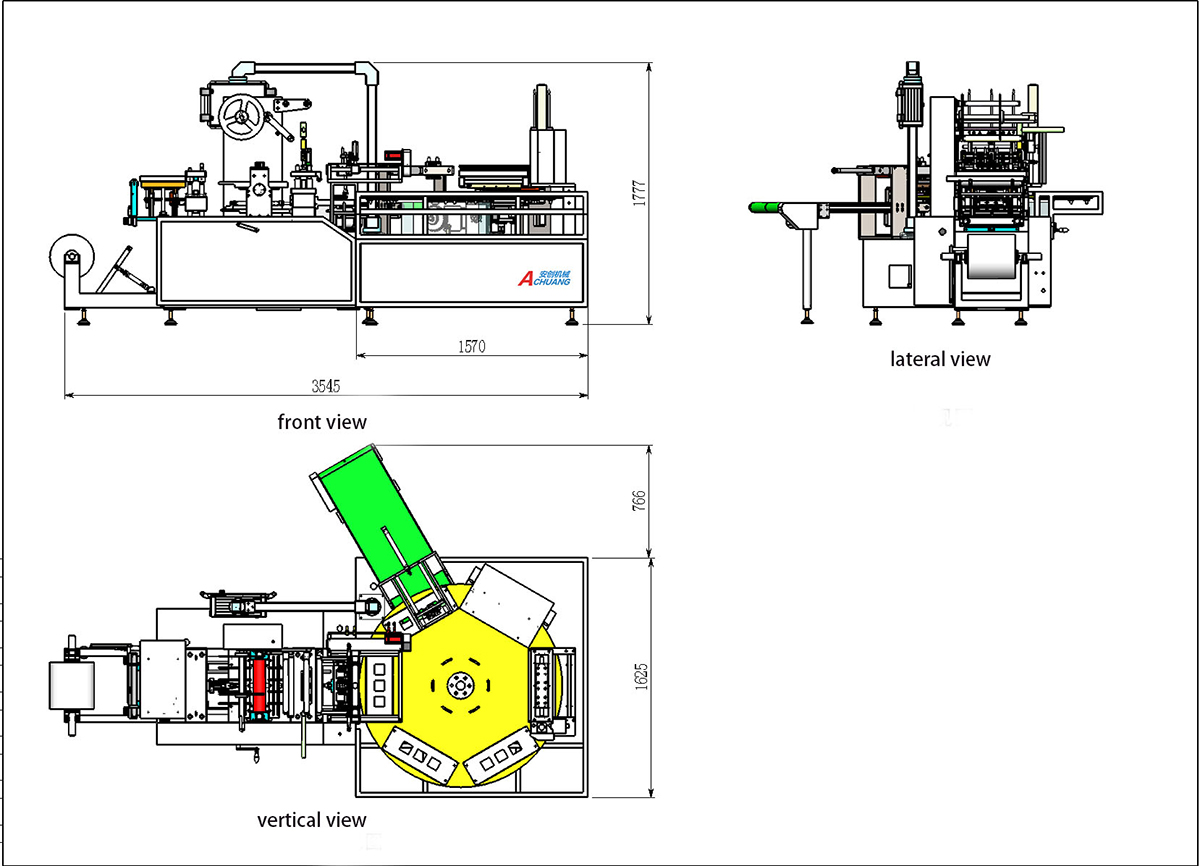

Three-view Drawing

AC-350 Automatic Blister Paper Card Packing Machine (3)
